Deutsch DRC Series
DRC series connectors are high density pin count rectangular connectors specifically designed for environments where moisture, dirt and rough terrain can contaminate or damage electrical connections.

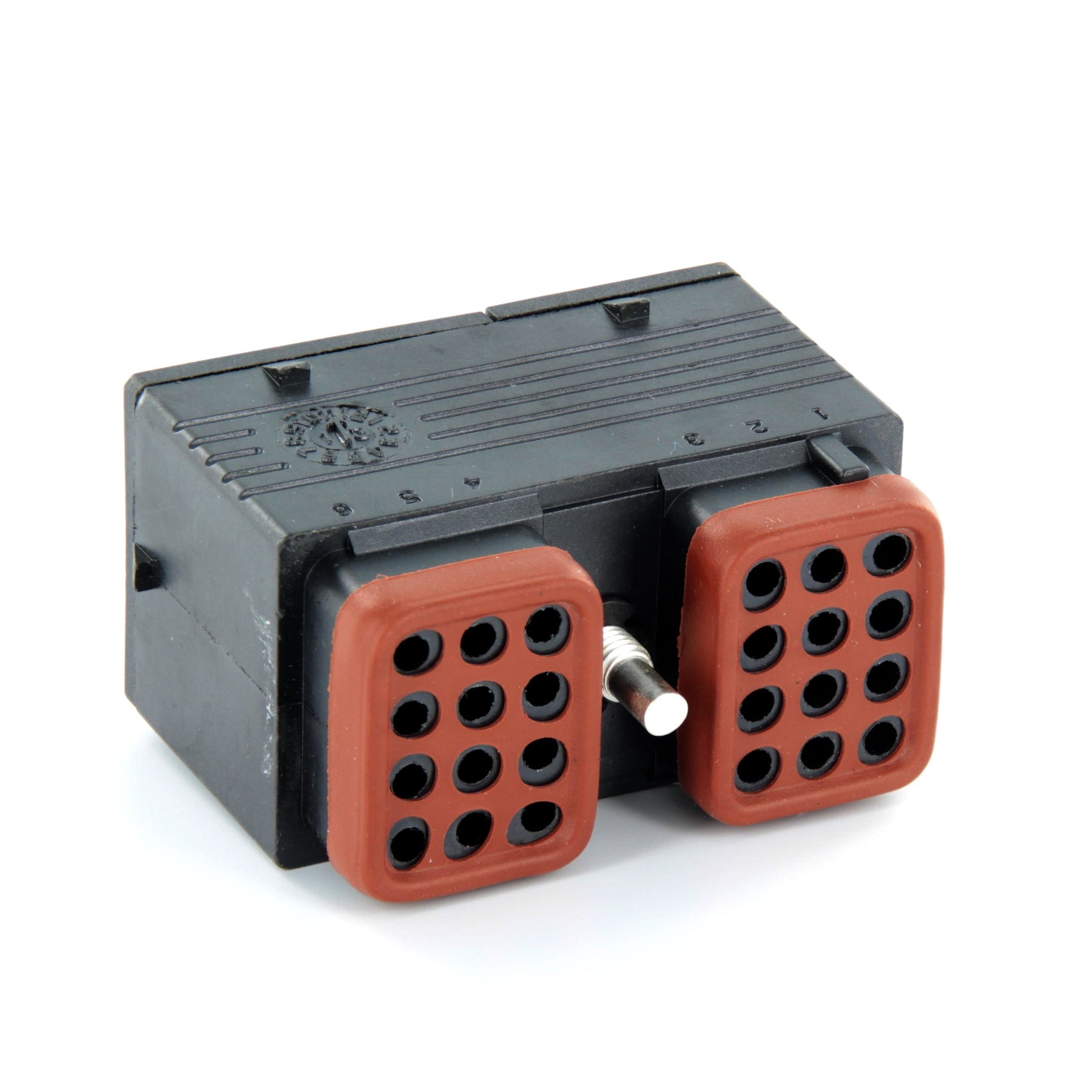

The DRC16-24SA-P013 accepts 24 size 16 contacts rated at 13 amps each. The high-performance thermoplastic body includes an integral flange for environmentally sealed bulkhead mounting. With seals and grommets that will withstand high engine and transmission temperatures, the DRC16-24SA-P013 is ideally suited for internally or externally mounted electronic modules. The DRC16-24SA-P013 is shock and vibration resistant, and meets all the standard specifications for the heavy-duty DEUTSCH product line.
| Part Number | DRC16-24SA-P013 |
| Series | DRC Series |
| Wire Size | 14, 16, 18, 20 |
| Keyed | Yes, A key |
| Color | Black |
| Material | Plastic |
| Shape | Rectangular |
| Connector Style | Plug |
| Cavities | 24 |
| Contact Size | 16 |
| Current Rating | 13 |
| Holds Pin/Socket | Socket |
| Modification | Bonded Front Seal |
| Flange/In-line/PCB Mount | Flange |
