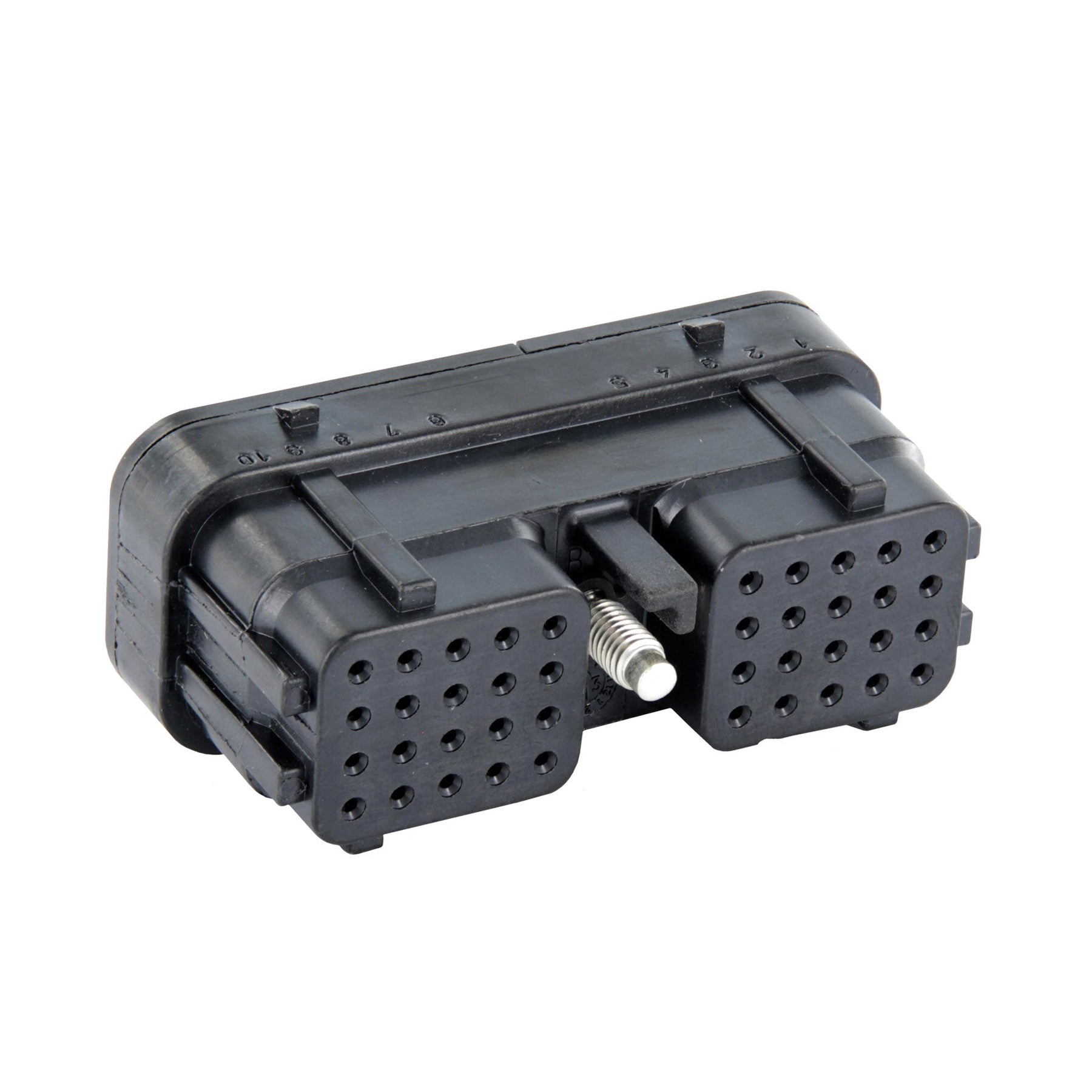

Conector Automotivo 26-40SB
em até 12x de R$ 64,55
+ Formas de Pagamento- À vista Total: R$ 637,00
- 2x de R$ 342,83 Total: R$ 685,67
- 3x de R$ 231,93 Total: R$ 695,80
- 4x de R$ 176,54 Total: R$ 706,18
- 5x de R$ 143,08 Total: R$ 715,41
- 6x de R$ 120,66 Total: R$ 723,95
- 7x de R$ 104,40 Total: R$ 730,77
- 8x de R$ 92,55 Total: R$ 740,39
- 9x de R$ 83,30 Total: R$ 749,69
- 10x de R$ 75,58 Total: R$ 755,80
- 11x de R$ 69,56 Total: R$ 765,16
- 12x de R$ 64,55 Total: R$ 774,66
Entrega via Sedex© para
Frete Expresso
Nota fiscal para CNPJ e CPF
Pedios para CNPJ e CPF sem complicações.
Entrega para TODO Brasil
Despachamos seu pedido em até 36 horas.
Diversas modalidades de Frete.
Auxílio Técnico via Whataspp
Garantia da escolha do produto certa!
Mais de 2000 clientes satisfeitos.
Deutsch DRC Series
DRC series connectors are high density pin count rectangular connectors specifically designed for environments where moisture, dirt and rough terrain can contaminate or damage electrical connections.
The DRC26-40SB accepts 40 size 20 contacts rated at 7.5 amps each. The high-performance thermoplastic body includes an integral flange for environmentally sealed bulkhead mounting. With seals and grommets that will withstand high engine and transmission temperatures, the DRC26-40SB is ideally suited for internally or externally mounted electronic modules. The DRC26-40SB is shock and vibration resistant, and meets all the standard specifications for the heavy-duty DEUTSCH product line.
| Part Number | DRC26-40SB |
| Series | DRC series |
| Wire Size | 16, 18, 20, 22 |
| Keyed | Yes, B Key |
| Color | Black |
| Material | Plastic |
| Shape | Rectangular |
| Connector Style | Plug |
| Cavities | 40 |
| Contact Size | 20 |
| Current Rating | 7.5 |
| Holds Pin/Socket | Socket |
| Flange/In-line/PCB Mount | In-line |
