Conector Circular Macho 24-9PE
em até 12x de R$ 42,56
+ Formas de Pagamento- À vista Total: R$ 420,00
- 2x de R$ 226,04 Total: R$ 452,09
- 3x de R$ 152,92 Total: R$ 458,77
- 4x de R$ 116,40 Total: R$ 465,61
- 5x de R$ 94,34 Total: R$ 471,70
- 6x de R$ 79,56 Total: R$ 477,33
- 7x de R$ 68,83 Total: R$ 481,82
- 8x de R$ 61,02 Total: R$ 488,17
- 9x de R$ 54,92 Total: R$ 494,30
- 10x de R$ 49,83 Total: R$ 498,33
- 11x de R$ 45,86 Total: R$ 504,50
- 12x de R$ 42,56 Total: R$ 510,76
Entrega via Sedex© para
Frete Expresso
FORMAS DE PAGAMENTO
Nota fiscal para CNPJ e CPF
Pedios para CNPJ e CPF sem complicações.
Entrega para TODO Brasil
Despachamos seu pedido em até 36 horas.
Diversas modalidades de Frete.
Auxílio Técnico via Whataspp
Garantia da escolha do produto certa!
Mais de 2000 clientes satisfeitos.
Deutsch HDP20 Series
Deutsch plastic shell HDP20 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD20 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism Fabricated from tear resistant, high temperature silicone, and a rear grommet, the HD20 contacts are protected from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations.
The HDP20 Series is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. HDP20 features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

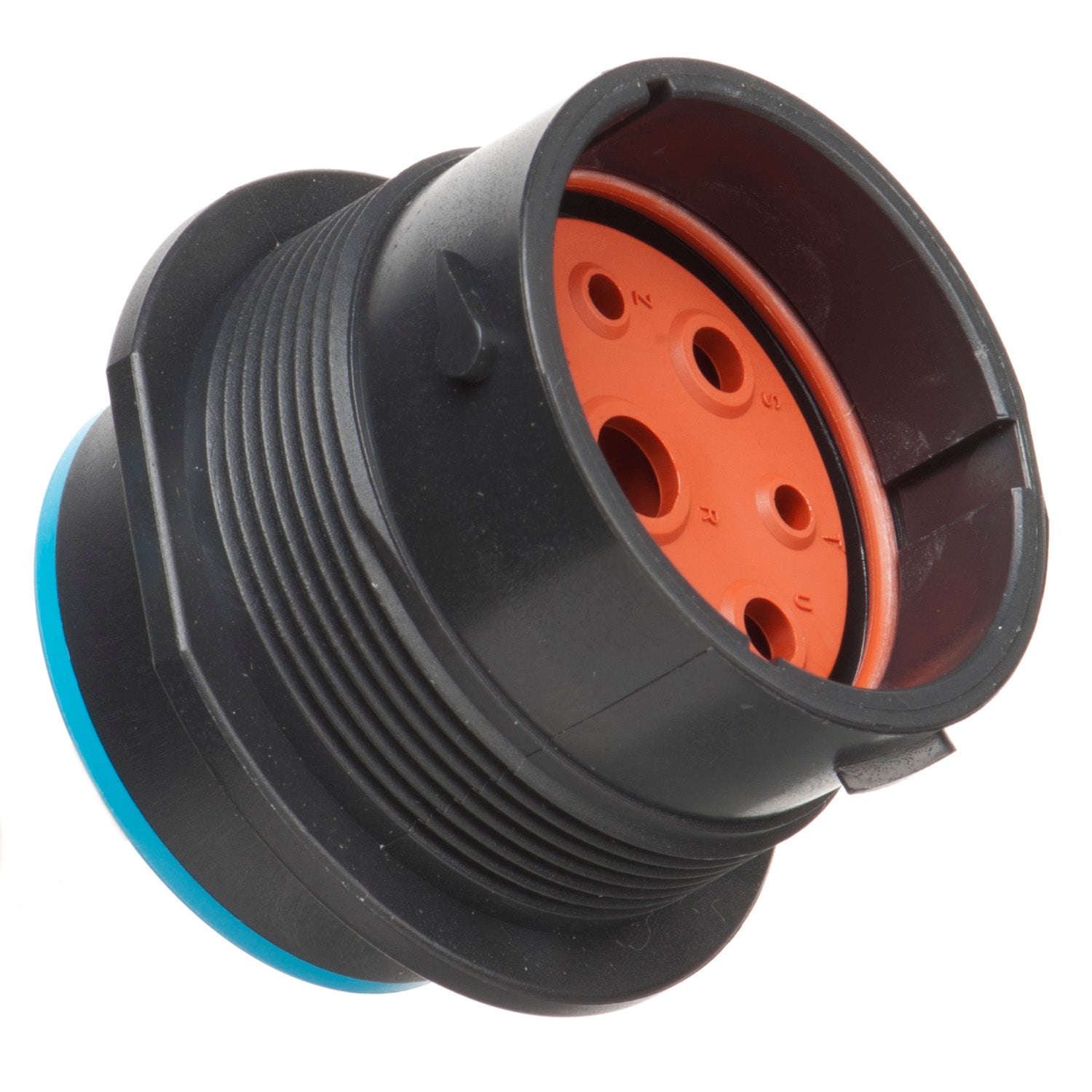

This receptacle takes 9-way sockets and has an E Seal. It has a shell size of 24.
| Part Number | HDP24-24-9PE |
| Series | HDP20 Series |
| Wire Size | 6, 8, 10, 12, 14 |
| Keyed | No |
| Color | Black |
| Material | Plastic |
| Shape | Circular |
| Connector Style | Receptacle |
| Cavities | 9 |
| Contact Size | 4, 8, 12 |
| Shell Size | 24 shell |
| Seal Size | E seal |
| Current Rating | 100, 60, 25 |
| Holds Pin/Socket | Pin |
| Flange/In-line/PCB Mount | Flange, In-line |
